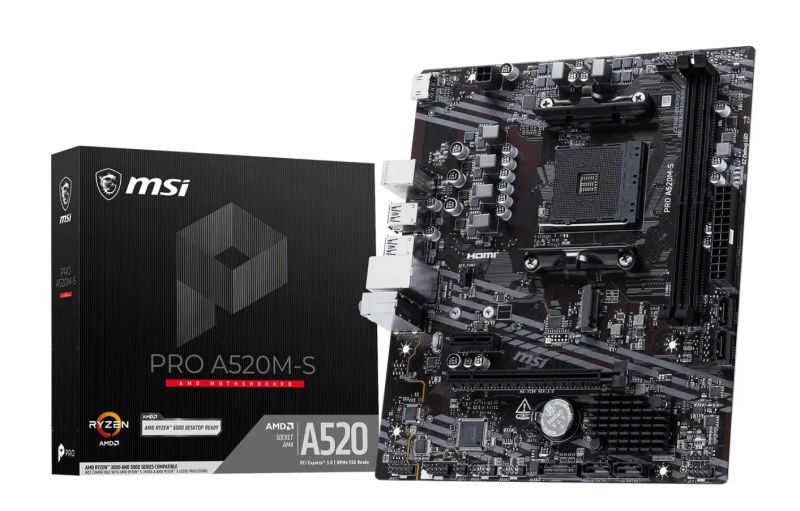

MSI PRO A520M-S/AM4/mATX

MSI PRO A520M-S Chipset: , AMD A520 Rozměrový formát: ,mATX 200mmx236mm Podpora pro procesory: ,AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors Patice procesoru: ,AM4 Paměť: , *2x DDR4, Maximum Memory Capacity 64GB *Memory Support DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE *Ryzen™ 5000 Series Processors max. overclocking: *1DPC 1R Max speed up to 4600+ MT/s *1DPC 2R Max speed up to 3866+ MT/s *Supports JEDEC Speed *Supports Dual-Channel mode *Supports non-ECC, un-buffered memory *Supports Memory Overclocking by A-XMP OC mode Grafické porty: , 1x HDMI *Support HDMITM 1.4, maximum resolution of 4K 30Hz Zvuková karta: , *Realtek® ALC897 Codec *7.1-Channel High Definition Audio Ethernet: ,Realtek® RTL8111H 1Gbps LAN Rozšiřující sloty: , 1x PCI-E x16 slot 1x PCI-E x1 slot *PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) *PCI_E2 Gen PCIe 3.0 supports up to x16 (From CPU) RAID řadič: ,RAID 0, RAID 1, RAID 10 Úložný prostor: , 1x M.2 *M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260 devices 4x SATA 6G USB: , Zadní USB *2x USB 2.0 *4x USB 5Gbps Type A Přední USB *4x USB 2.0 *2x USB 5Gbps Type A Interní porty: , Napájení *1× Power Connector (ATX_PWR) *1× Power Connector (CPU_PWR) *1× CPU Fan *1× System Fan USB *4× USB 2.0 ports *2× USB 5Gbps Type-A ports Ostatní *2× Front Panel (JFP) *1× Chassis Intrusion (JCI) *1× Front Audio (JAUD) *1× COM Port (JCOM) Porty na zadním panelu: , *HDMI *Keyboard / Mouse *USB 5Gbps Type-A *LAN Port *Audio connectors *USB 2.0 OS: Windows 11 64-bit
