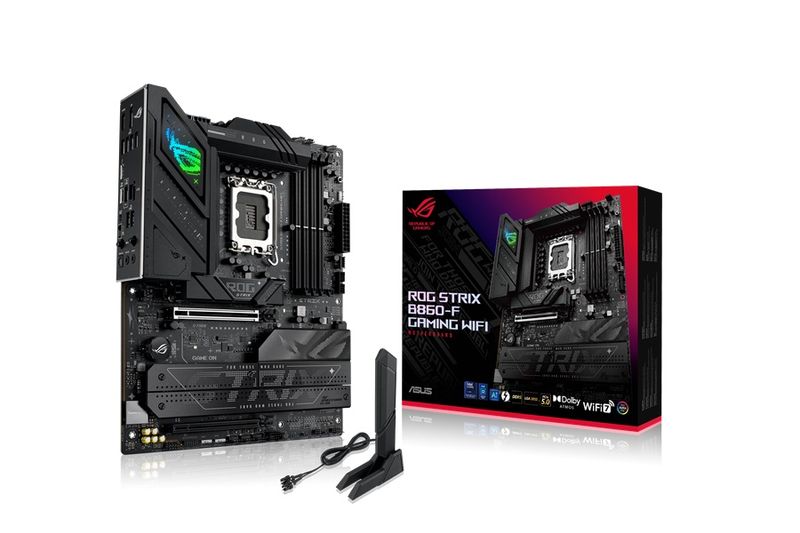

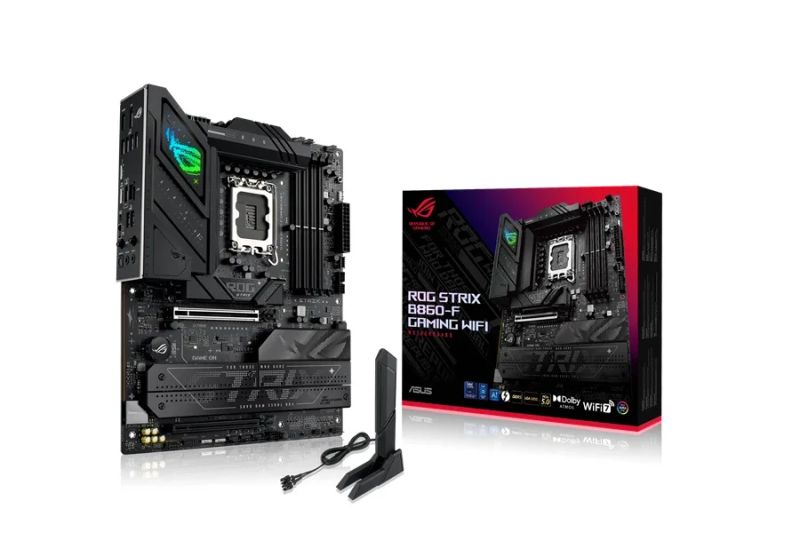

ASUS rog strix B860-F gaming wifi

ASUS ROG STRIX B860-F GAMING WIFI * ATX Form Factor CPU: Intel® Socket LGA1851 for Intel® Core™ Ultra Processors(Series 2), Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** Chipset: Intel® B860 Chipset Paměť: 4 x sloty DIMM, max. 192 GB, DDR5 - Podpora až 9066MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) *Dvoukanálová paměťová architektura *Podpora paměťového modulu Intel® Extreme Memory Profile (XMP) *Osazení DIMM Grafické porty: *1 x DisplayPort *1 x HDMI™ port *1 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs Rozšiřující sloty: Intel® Core™ Ultra Processors(Series 2) *1 x PCIe 5.0 x16 slot (supports x16) Intel® B860 Chipset *1 x PCIe 4.0 x16 slot (supports x4 mode) Úložný prostor: Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel® Core™ Ultra Processors(Series 2) *M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset *M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) *M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) *M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) *4 x SATA 6Gb/s ports Ethernet: *1 x Intel® 2.5Gb Ethernet *ASUS LANGuard Připojení a Bluetooth: *Wi-Fi 7 *2x2 Wi-Fi 7 (802.11be) *Supports 2.4/5/6GHz frequency band *Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. *Bluetooth® v5.4 USB: Zadní USB (Total 7 ports) *1 x Thunderbolt™ 4 port (1 x USB Type-C®) *1 x USB 20Gbps port (1 x USB Type-C®) *1 x USB 10Gbps ports (1 x Type-A) *6 x USB 5Gbps ports (6 x Type-A) Přední USB (Total 7 ports) *1 x USB 10Gbps (1 x USB Type-C®) *1 x USB 5Gbps header support 2 additional USB 5Gbps ports *2 x USB 2.0 headers support 3 additional USB 2.0 ports Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 *SupremeFX Shielding Technology *Savitech SV3H712 AMP *Rear optical S/PDIF out port *Premium audio capacitors *Audio cover Vstupy/výstupy zadního panelu: *1 x Thunderbolt™ 4 (1 x USB Type-C®) *1 x USB 20Gbps port (1 x USB Type-C®) *1 x USB 10Gbps port (1 x Type-A) *6 x USB 5Gbps ports (6 x Type-A) *1 x DisplayPort *1 x HDMI™ port *1 x Wi-Fi module *1 x Intel® 2.5Gb Ethernet port *2 x audio jacks *1 x Optical S/PDIF out port *1 x BIOS FlashBack™ button *1 x Clear CMOS button Interní vstupy/výstupy: Ventilátory a chlazení: *1 x 4-pin CPU Fan header *1 x 4-pin CPU OPT Fan header *1 x 4-pin AIO Pump header *4 x 4-pin Chassis Fan headers Napájení: *1 x 24-pin Main Power connector *2 x 8-pin +12V CPU Power connectors Úložiště: *4 x M.2 slots (Key M) *4 x SATA 6Gb/s ports USB: *1 x USB 10Gbps connector (supports USB Type-C® ) *1 x USB 5Gbps header support 2 additional USB 5Gbps ports *2 x USB 2.0 headers support 3 additional USB 2.0 ports Různé: *3 x Addressable Gen2 headers *1 x Chassis Intrusion header *1 x Front Panel Audio header (F_AUDIO) *1 x Start button *1 x 10-1 pin Front System Panel header *1 x Thermal Sensor header *1 x Thunderbolt™ (USB4®) header Příslušenství: Kabely: *2 x SATA 6Gb/s cables Různé: *1 x ASUS WiFi Q-Antenna *1 x Cable ties package *1 x M.2 Q-Latch package *1 x M.2 Q-Slide package *1 x ROG key chain *1 x ROG Strix stickers *4 x M.2 rubbers Dokumenty: *1 x Quick start guide
