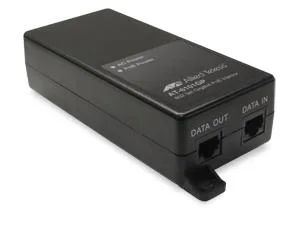

Allied Telesis PoE Injector, 802.3at AT-6101GP

Allied Telesis AT-6101GP Gigabit PoE+ Injector OVERVIEW The Allied Telesis AT-6101GP Power over Ethernet Plus Injector provides data and power through the Ethernet cable to PoE-equipped devices such as access points, IP cameras, VoIP phones and any other equipment supporting the IEEE 802.3at standard. FEATURES • Feeds power to Gigabit Ethernet devices • Remote power feeding application • Overload and short circuit protection • Mix Ethernet and power into a single LAN • Deliver power up to 100 meters • Full IEEE 802.3at compliance • Plug-and-Play • CE, FCC, GOST, C-Tick approved • Lightweight and compact size • RoHS and WEEE compliant • UL listed SPECIFICATIONS Standards • IEEE 802.3 10T Ethernet • IEEE 802.3u 100TX • IEEE 802.3ab 1000T • IEEE 802.3at • IEEE 802.3af Interface • RJ-45 Connector for 10/100/1000T Gigabit Cooper Ports Connector • Data in: RJ45 • Data Pin Out: 1,2,3,4,5,6,7,8 • Data and Power Out: RJ45 • Data Pin Out: 1,2,3,4,5,6,7,8 • Power Pin Out: 1,2,3,6 Switching Scheme • Store-and-Forward Security Network Cable: • 10T: 2-pair UTP/STP Cat 3,4,5 cable EIA/TIA-568 100-? (100m) • 100TX: 2-pair UTP/STP Cat.5 cable EIA/TIA-568 100-? (100m) Recommend Cat.5e cable above • 1000T: 4-pair UTP/STP Cat.5E cable LED Indicators • AC Power x 1 (Green light on: Active, off: No Power) • Feeding Power x 1 (Green light on: Powering Remote Device, off: No Power Supplied) Power Supply • Rated input voltage: 100VAC~240VAC • Rated input frequency: 50~60Hz • Rated input current: 0.72A • Output voltage: 55VDC POE Output voltage • Output current: 600mA POE Output current • Output watt: 33W max. POE Output watt • Over current protection: Yes Environmental Specifications • Operating temperature: 0°C to 40°C • Storage temperature: -20°C to 80°C • Humidity Operating: 10 to 90% (non-condensing) • Humidity Storage: 10 to 90% (non-condensing) Physical Specifications • Dimensions (W x D x H): 65 x 36 x 140 mm • Weight: 300g • Case: Plastic Enclosure • Flammability: UL94-V0 (PCB) Power Characteristics • Power Consumption: 36W
